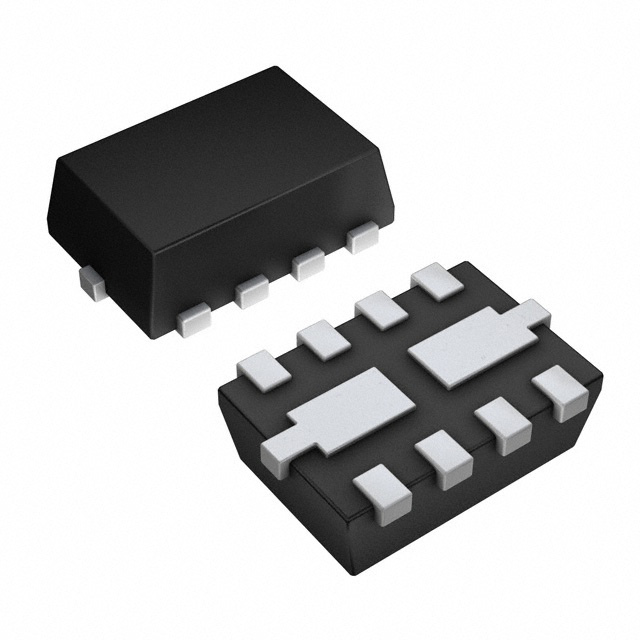

ZXTDB2M832TA
TRANS NPN/PNP 20V 4.5A/3.5A 8MLP
Manufacturer: Diodes IncorporatedIC code: ZXTDB2M832TATR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Bipolar (BJT) Transistor Array 1 NPN, 1 PNP 20V 4.5A, 3.5A 140MHz, 180MHz 1.7W Surface Mount 8-MLP (3x2)
Specifications
- Series
- -
- Packaging
- Tape & Reel (TR)
- Part Status
- Obsolete
- Power - Max
- 1.7W
- Manufacturer
- Diodes Incorporated
- Mounting Type
- Surface Mount
- Package / Case
- 8-VDFN Exposed Pad
- Transistor Type
- 1 NPN, 1 PNP
- Base Product Number
- ZXTDB2M832
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Frequency - Transition
- 140MHz, 180MHz
- Supplier Device Package
- 8-MLP (3x2)
- Vce Saturation (Max) @ Ib, Ic
- 270mV @ 125mA, 4.5A / 300mV @ 350mA, 3.5A
- Current - Collector (Ic) (Max)
- 4.5A, 3.5A
- Current - Collector Cutoff (Max)
- 25nA
- DC Current Gain (hFE) (Min) @ Ic, Vce
- 200 @ 2A, 2V / 150 @ 2A, 2V
